Ultra-stable, high precision (ppm class) fluxgate technology DS Series current transducer for non-intrusive, isolated DC and AC current measurement up to 100A.

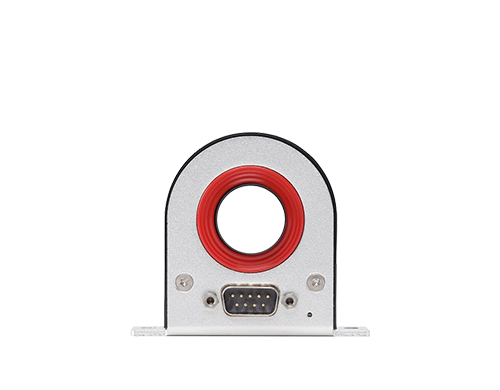

Current Transducer
DS50UB-1V
- Linearity error maximum +/- 24 ppm
- 1V BNC output connection
- Fluxgate, closed loop compensated technology with fixed excitation frequency and second harmonic zero flux detection for best in class accuracy and stability
- Industry standard DSUB 9 pin connection
- Green diode for normal operation indication
- Full aluminum body for superior EMI shielding and extended operating temperature range
- Large aperture 27.6mm for cables and bus bars
Description
Primary Current Rating
Total Accuracy
Bandwidth
Aperture
Applications
- MPS for particles accelerators
- Gradient amplifiers for MRI devices
- Stable power supplies
- Precision drives
- Batteriy testing and evaluation systems
- Power measurement and power analysis
- Current calibration purposes
