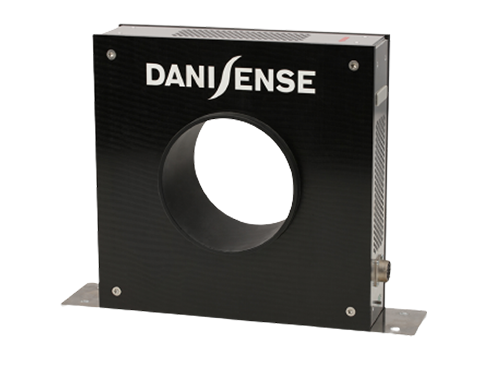

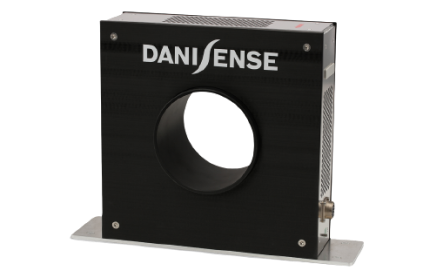

Current Transducer
DR5000IM
- Linearity error maximum 1 ppm
- 4mm banana jack for secondary current
- Transducer core optimized for high level of immunity against external magnetic fields
- Operating temperature: Transducer head 0-70°C - Electronics 0-45°C
- Turns ratio 1:2500

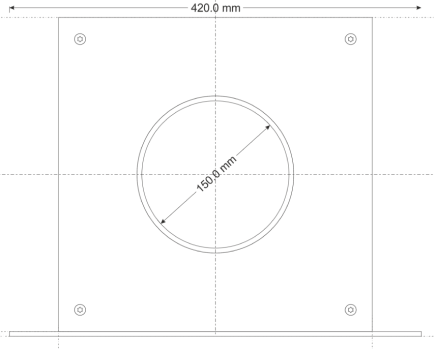

- Aperture diameter 150 mm
- 2U 19” Control unit with universal mains supply 100V-240V
Description
Ultra-stable, high precision (ppm class) fluxgate technology DR Series current transducer for non-intrusive, isolated DC and AC current measurement up to 8000A.
Primary Current Rating
Total Accuracy
Bandwidth
Aperture
Applications
- MPS for particles accelerators
- Stable power supplies
- Precision drives
- Batteries testing and evaluation systems
- Power measurement and power analysis
- Current calibration purposes
