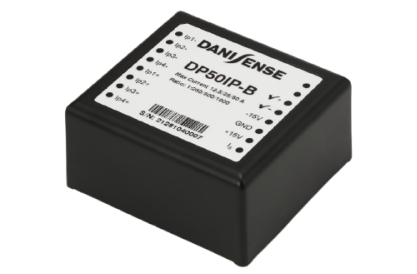

Current Transducer
DP50IP-B
- Linearity error maximum 10 ppm
- Measurement resistor up to 100Ω at full scale
- Fluxgate, closed loop compensated technology with fixed excitation frequency and second harmonic zero flux detection for best in class accuracy and stability
- PCB mount
- Height 32mm - Suitable for 1U power supplies
- Programmable for 12.5A, 25A, or 50A via PCB layout
- 250g weight and compact size - ideal for PCBmounted applications with space constraints
Description
Ultra-stable, high precision (ppm class) fluxgate technology DP Series current transducer for isolated DC and AC current measurement on PCB up to 72A.
Primary Current Rating
Total Accuracy
Bandwidth
Applications
- MPS for particles accelerators
- Stable power supplies
- Precision drives
- Batteriy testing and evaluation systems
- Power measurement and power analysis
Compatible products
DSSIU-4-1U
DSSIU-6-1U
Cables
Similar products
DT50ID

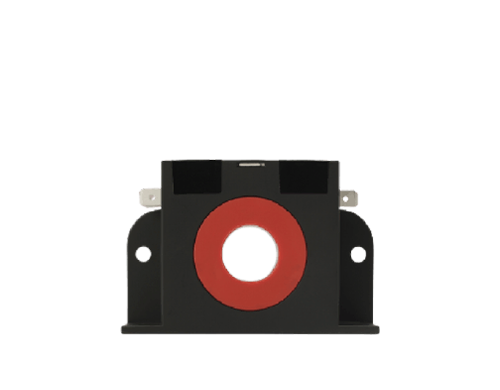

DC200IF
