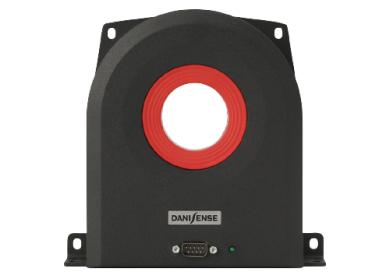

Ultra-stable, high precision (ppm class) fluxgate technology DM Series current transducer for non-intrusive, isolated DC and AC current measurement up to 1500A.
Current Transducer
DM1200ID-CD3000
- Ø45mm aperture enabling large isolated cables and the possibility to measure leakage current at high precision.
- 3 ppm linearity, 12 ppm offset
- Current output
- Fluxgate, closed loop compensated technology with crystal driven excitation frequency for increased stability
- Access to 3000 turns calibration winding in DSUB
- Possibility to perform 1500A calibration with 500mA source through calibration winding of 3000 turns
- Not suitable for frequencies above 15kHz due to calibration winding
Description
Primary Current Rating
Total Accuracy
Bandwidth
Aperture
Applications
- Stable power supplies
- MPS for particles accelerators
- Batteries testing and evaluation systems
- Current calibration—Metrology
